LAM series Passive Columnar Line Array

LAM series Passive Columnar Line Array

The LAM Series from Orange Pale offers a cost-effective, passive alternative to the premium LAD series, designed for easy integration with existing amplification systems. These modular columnar line array speakers are ideal for venues requiring high directivity and clarity of sound. Key features include:

  • Precision Sound Coverage: Minimizes sound spillage to ceilings and floors while maintaining wide horizontal dispersion.
  • Exceptional Clarity: Ensures clear speech delivery with a throw distance of up to 100 feet in open conditions.
  • High Power Capability: Handles 480W to 1300W per enclosure with peak SPL levels up to 120dB.
  • Modular Design: Configurable in multiple combinations, including 4, 8, 16, 32, and 64 drivers.
  • Future-Proof: Upgradable to active DSP or network configurations without compromising the initial investment.
Category:

LAM SERIES COLUMNAR LINE ARRAY LOUDSPEAKERS

A line array loudspeaker system features a number of identical (or nearly identical) loudspeakers arranged in a vertical line: hence the name.

Line array systems can be Columnar Line Arrays or flown stacks for very large venues. They can be vertical or sometimes horizontal (as in subwoofer arrays) They can digitally steered arrays or manually aligned arrays.

Orange Pale’s LAM series was developed as a more cost-effective passive alternative to the flagship LAD series and offered easier integration with existing amplification.

  • The key characteristics include:
    • High Directivity system: The design of the LAM series ensured that sound spillage to the ceiling and floor was minimized within 10 degrees whilst maintaining a very broad horizontal dispersion.
    • Excellent clarity of speech with double to triple the throw distance of conventional box speakers (measured 60 -100 feet in free field conditions)
    • High power and fatigue free High sound pressure (120dB) levels capable of handling 480W-1300W per enclosure (LAM12/LAM16/LAM32)
    • Modular and stackable- 4, 8,12, 16, 32, 64 driver combinations could be configured.

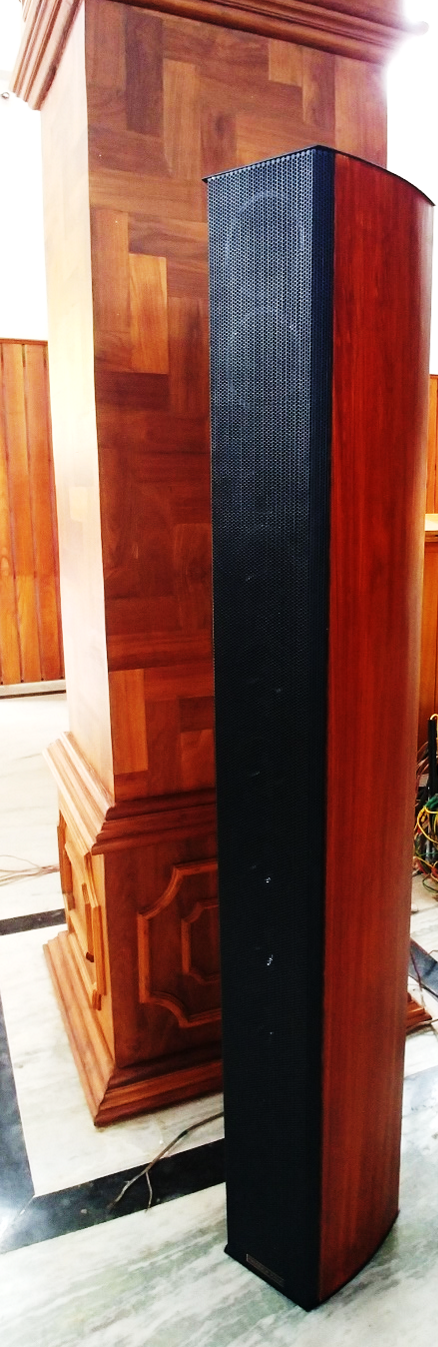

    • Visually unobtrusive and identical in appearance to the LAD powered Network Arrays. (see pic)
    • Upgradeable over the years to either Active DSP (DPA) or Network (LAD) configurations. The original investment remains intact!





TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Columnar Line Array Speakers LAM12 LAM8 LAM4
DRIVER ELEMENT 12 8 4
MAX POWER INPUT (W) 480 320 160
THROW DISTANCE (FEET) 55-65 40-55 20-35
FREQUENCY RESPONSE 80 hz-19khz 95- 19khz 120-19Khz
MAX SPL/1M Db/W 116 110 103
Weight 15kg 10kg 5kg
Standard Finish Black texture Black texture Black texture
Warranty 2 years 2 years 2 years



Subwoofer LFT1201 LFT1001 LFT801
DRIVER ELEMENT 12” LFT SUB DRIVER 10” LFT SUB DRIVER 8” LFT SUB DRIVER
MAX POWER INPUT (W) 250 160 100
FREQUENCY RESPONSE 30-150 hz 35-150 hz 40-150 hz
DIMENSIONS (INCHES) 53”(H)x 7”(W)x 9”(D) 31”(H)  x 7” (W) x9”(D) 22”(H)x 7”(W)x 9” (D)
Weight 17kg 12kg 9kg
Standard Finish Black texture Black texture Black texture
Warranty 2 years 2 years 2 years
